Limit Sets and Invariance

The $\omega$-limit set

The $\omega$-limit set describes the asymptotic behavior of trajectories based on some fixed starting points. It is the set which is reached after "infinite time". For some starting set $S$ in the domain $Q$, let $O^k (S) = \bigcup_{n \geq k} f^n (S)$ be the set $S$ at all times after $k$ iterations. Now,

\[\omega (S) = \bigcap_{k \geq 0} \overline{O^k (S)} . \]

By taking the intersection over all $k$, we are "stripping away" all finite-time behavior, leaving only the set which is maintained in infinite time.

Let us lift this definition onto the BoxMap F over some BoxLayout P and initial set S ⊂ P. We give P the discrete topology so that $\overline{O^k (S)} = O^k (S)$ and hence the $\omega$-limit set reduces to $\omega (S) = \bigcap_{k \geq 0} F^k (S)$. This can be easily iteratively obtained by

function my_ω(F, S)
    Sₖ = S
    Sₖ₊₁ = empty(S)

    while Sₖ₊₁ ≠ Sₖ
        Sₖ = Sₖ₊₁
        Sₖ₊₁ = Sₖ ∩ F(Sₖ)
    end

    return Sₖ
end

Since P is finite, this iteration must halt after finitely many steps.

using GAIO

# the Henon map
const a, b = 1.4, 0.3
f((x,y)) = (1 - a*x^2 + y, b*x)

cen, rad = (0, 0), (3, 3)
Q = Box(cen, rad)
P = BoxGrid(Q, (40,40))
F = BoxMap(f, P)
S = cover(P, :)

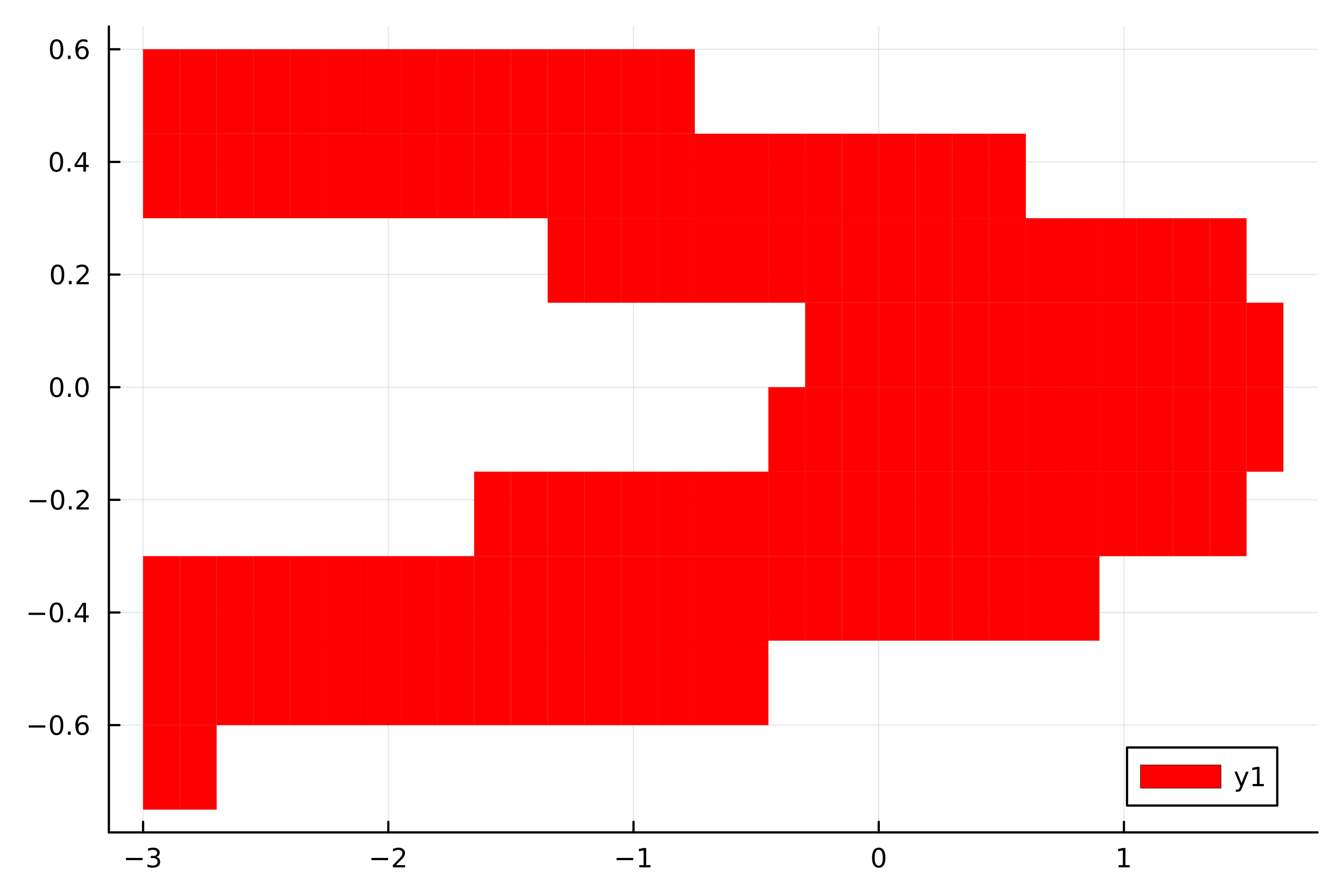

A = ω(F, S, subdivision=false)

using Plots

p = plot(A);

(Provided the BoxMap is accurate enough), this is now a covering of the original $\omega$-limit set. This is useful since we may now refine the BoxSet which was returned by ω(F, S), and run the iteration once more

function my_ω_with_subdivision(F, S, steps)
    for _ in 1:steps
        S = my_ω(F, subdivide(S))
    end
    return S
end

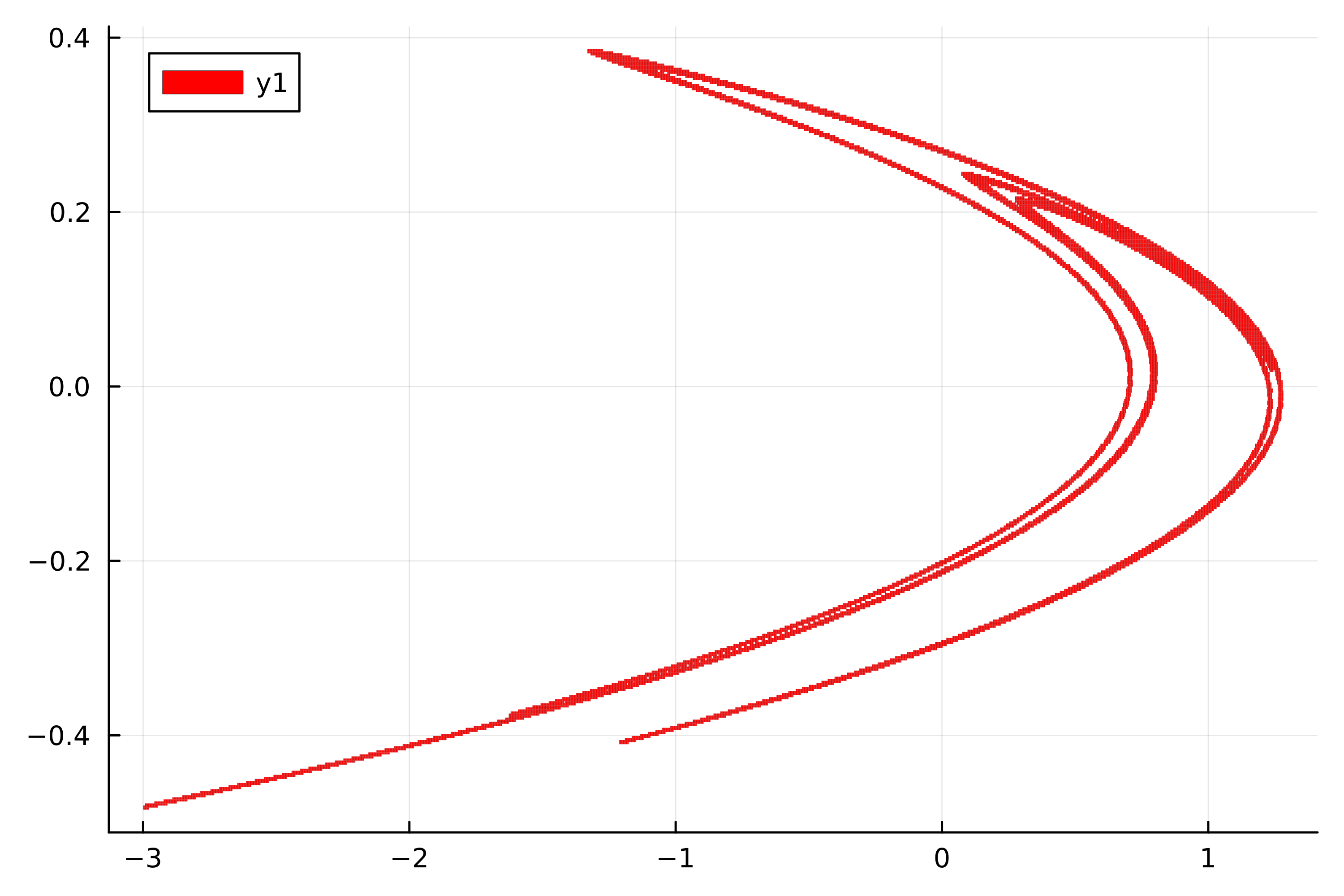

A = ω(F, A, subdivision=true, steps=12)

p = plot(A);

In GAIO.jl this subdivision algorithm is built into ω via the subdivision kwarg, ω(F::BoxMap, S::BoxSet; subdivision = false). Moreover, the number of iterations can be capped using the steps kwarg.

ω(F::BoxMap, B::BoxSet; subdivision=true, steps=subdivision ? 12 : 64) -> BoxSet

The $\alpha$-limit set

The $\alpha$-limit set is the "time-reversed" $\omega$-limit set

\[\alpha (S) = \bigcap_{k \geq 0} \overline{O^{-k} (S)} . \]

where $O^{-k} (S) = \bigcup_{n \geq k} f^{-n} (S)$ and $f^{-n} (A)$ is the preimage of $A$ under $f^n$. When we again lift this definition to BoxMaps, we arrive at $\alpha (S) = \bigcap_{k \geq 0} F^{-k} (S)$, so that the previous algorithms still work with $F^{-1}$ (the preimage function) replacing $F$,

function α(F, S)
    F⁻¹(B) = preimage(F, B, B)   # actually computes  F⁻¹(B) ∩ B
    return ω(F⁻¹, S)             # which is all we need
end

Here too, this is implemented in GAIO.jl with the subdivision and steps kwargs.

Invariant Sets

The $\omega$-limit set has the property that

\[f^{-1} (\omega(S)) = \omega(S) . \]

Analogously, the $\alpha$-limit set satisfies

\[f (\alpha(S)) = \alpha(S) . \]

Other sets which satisfy such conditions are called backward (resp. forward) invariant. A set which is both backward and forward invariant is just called invariant.

An exercise shows that $\omega(S)$ (resp. $\alpha(S)$) is in fact the largest subset of $S$ which is backward (resp. forward) invariant. For this reason, the synonyms

maximal_backward_invariant_set = ω
maximal_forward_invariant_set = α

are made available in GAIO.jl. For historical reasons [7], the synonym

relative_attractor = ω

is also available.

Finally, after reading through the above algorithms the reader likely already has an idea for how to compute the maximal invariant subset of $S$,

function maximal_invariant_set(F, S)
    G(B) = F(B) ∩ preimage(F, B, B)   # computes  F⁻¹(B) ∩ B ∩ F(B)
    return ω(G, S)
end

Of course, the kwargs subdivision and steps are available here as well.

ω(F::BoxMap, B::BoxSet; subdivision=true, steps=subdivision ? 12 : 64) -> BoxSet
